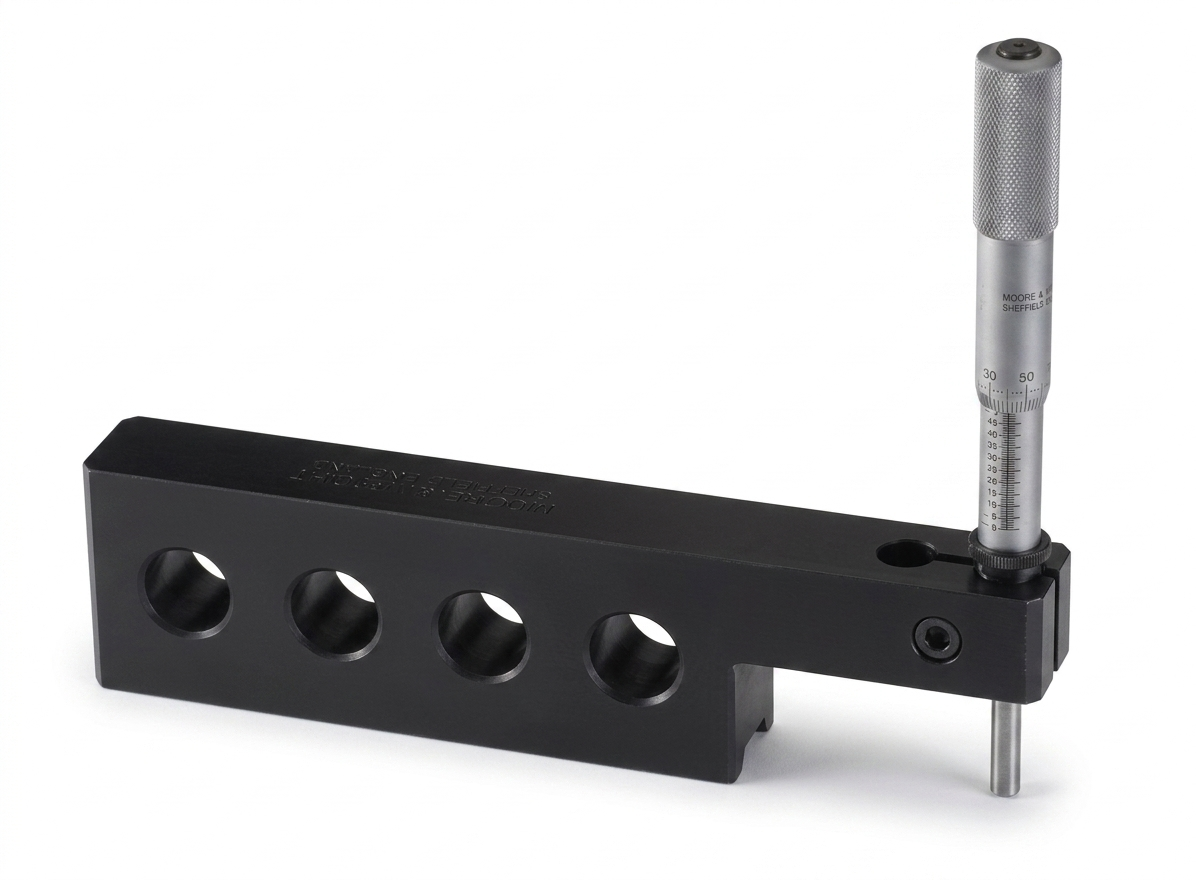

Bridge Micrometer: BM08-K (Kit)

The 8-inch Bridge Micrometer Kit is a precision turbine measurement tool designed to accurately measure elevation differences between critical components during assembly, inspection, and maintenance. Featuring a premium 2-inch Starrett micrometer head and rugged bridge-style construction, it provides the accuracy needed to ensure proper alignment, fit-up, and long-term turbine reliability.

Key Features:

• Precision measurement of elevation differences between adjacent components
• Ideal for turbine assembly, maintenance, inspection, and outage work
• Premium 2-inch Starrett micrometer head for exceptional accuracy
• Measures weld heights, crush pins, diaphragm keys, diaphragm springs, and split-line elevations
• Bridge-style design provides stable and repeatable measurements
• Supports proper turbine alignment and component fit-up
• Helps identify dimensional variations before assembly issues occur
• Rugged construction for field and shop environments
• Improves turbine efficiency, reliability, and service life
• Trusted by turbine technicians, OEMs, and power generation maintenance professionals

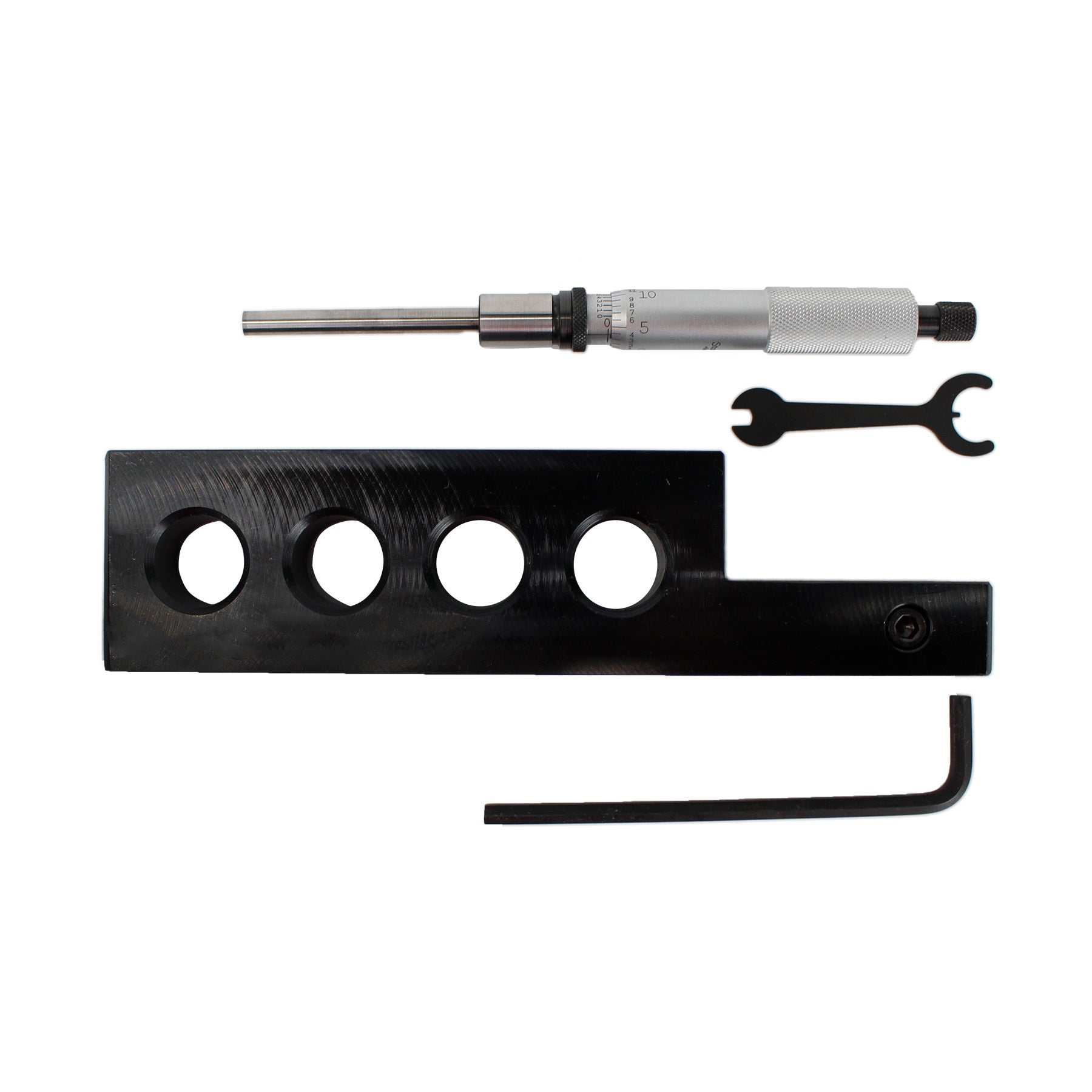

BM08-K Kit Includes:

• • (1) 8-inch bridge micrometer body with a 5-1/2 inch body length and a 2-1/2 inch bridge length
  • (1) 2-inch Starrett micrometer head with wrench
  • (1) Hex adjustment wrench
