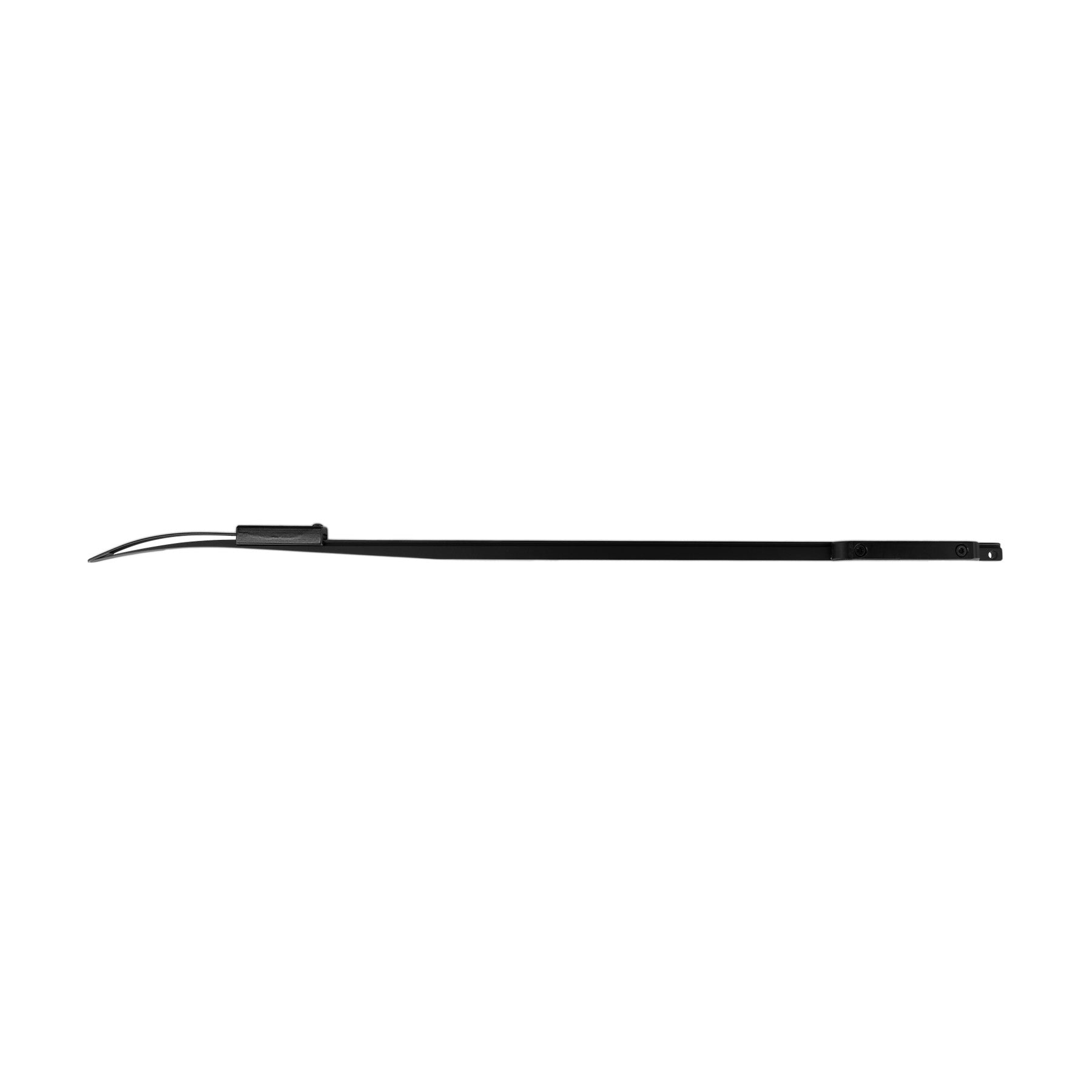

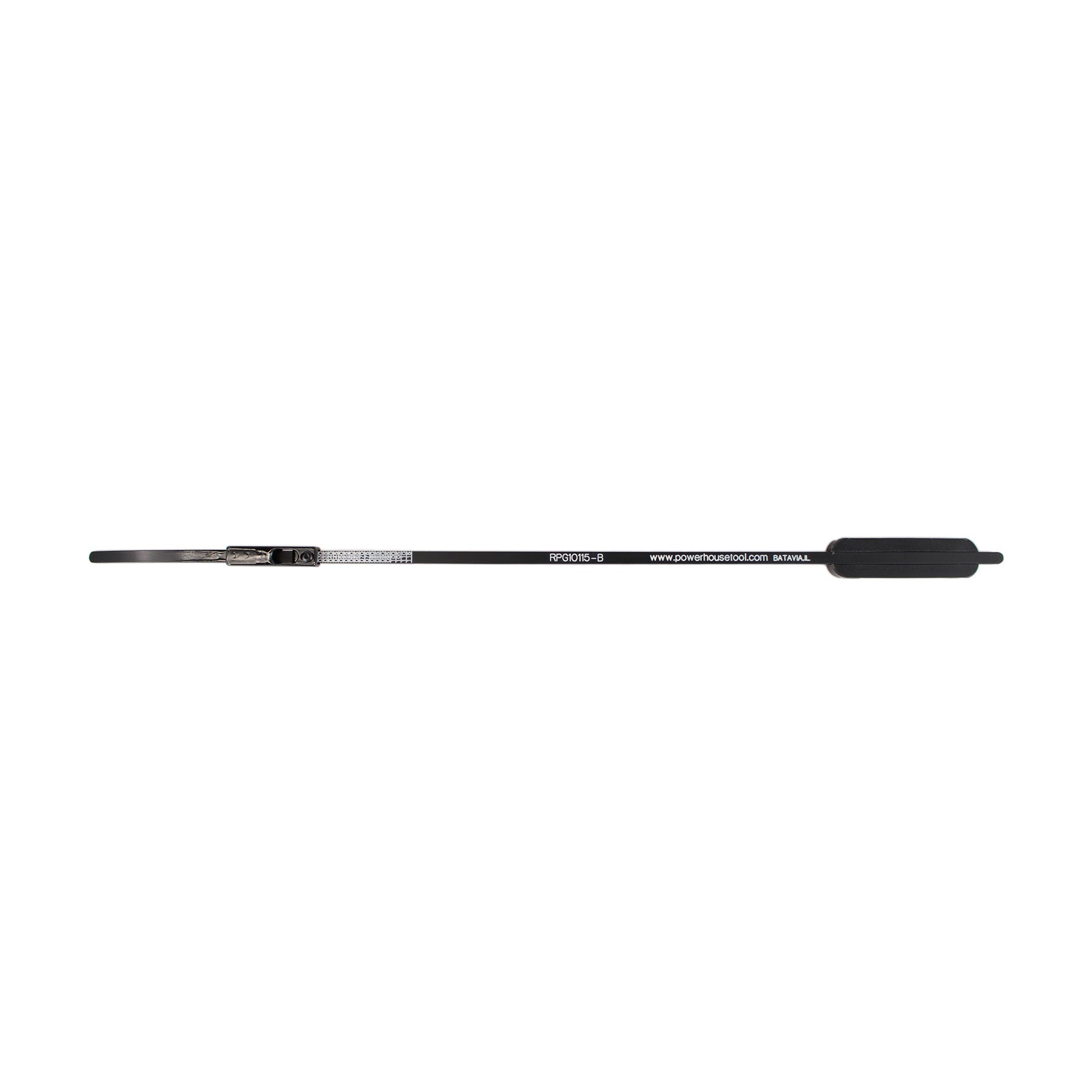

Radius Packing Gauge - Easy Read (Inch Sizes)

The Radius Packing Gauge – Easy Read (Inch Sizes) is a precision turbine inspection tool designed to measure radius and axial clearances between packing, shafts, rotors, diaphragms, and turbine components. Featuring a high-visibility Easy Read finish and precision inch-based design, this gauge provides accurate measurements, improved readability, and reliable performance for turbine maintenance, outage inspections, rotor alignment, and power generation applications.

Key Features

• Precision inch-based radius and axial clearance measurements

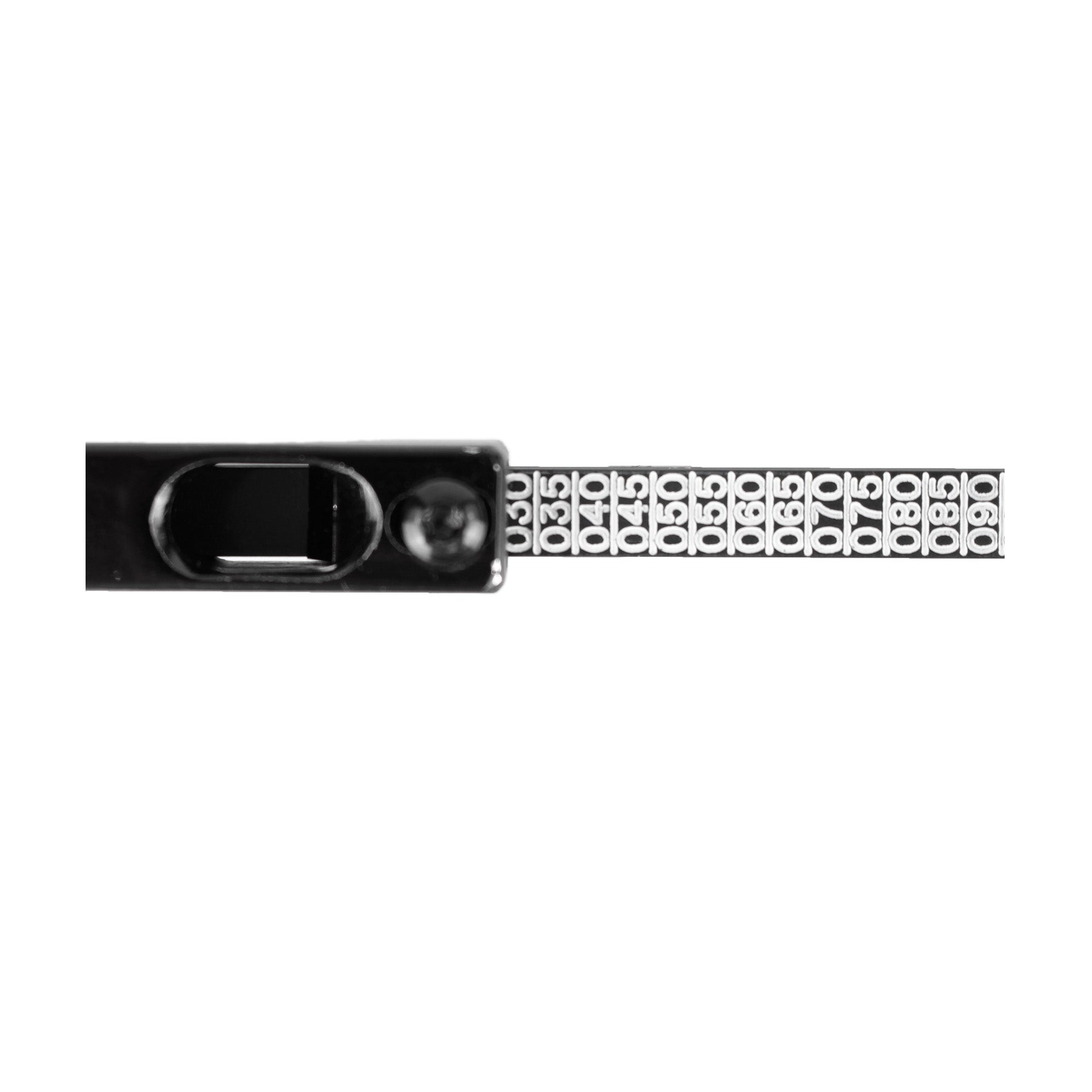

• High-visibility Easy Read markings for improved readability
• Designed for turbine packing, shaft, and rotor inspections
• Clears shaft and rotor for accurate readings below the joint
• RPG10115B measures below damaged or worn packing teeth
• RPG10115A-B measures directly at the horizontal joint
• Ideal for turbine maintenance, outage, and overhaul work
• Performs reliably in harsh field service environments
• Improves access in confined turbine measurement areas
• Durable construction for long service life

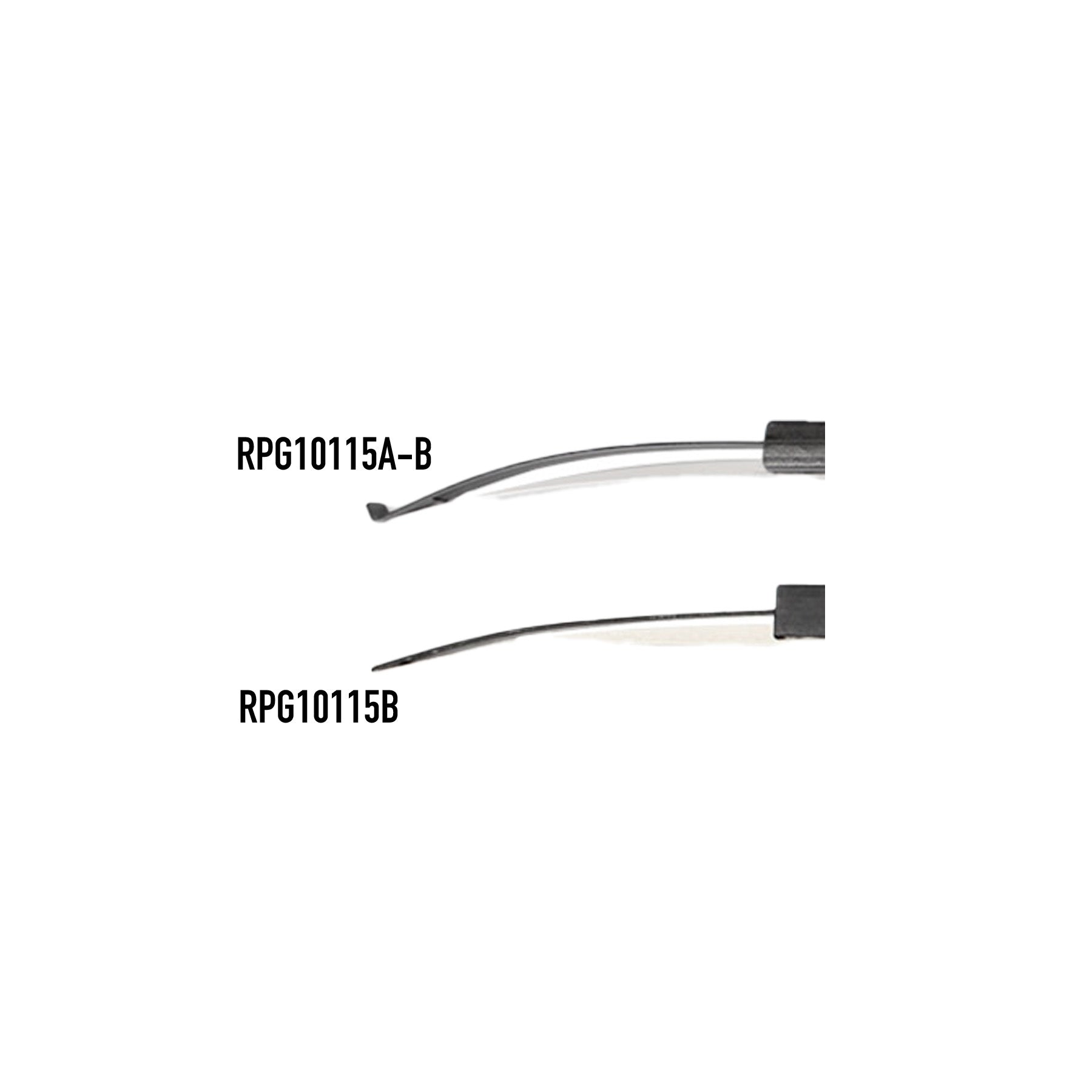

Model Number: RPG10115B - Measures below damaged or worn packing teeth.

Model Number: RPG10115A-B - Only takes readings at the horizontal joint.
