Radius Packing Gauge - Easy Read (Metric Sizes)

The Radius Packing Gauge – Easy Read (Metric Sizes) is a precision turbine inspection tool designed to measure radius and axial clearances between packing, shafts, rotors, diaphragms, and turbine components. Featuring a high-visibility Easy Read finish and precision metric graduations, this gauge provides accurate measurements, enhanced readability, and dependable performance for turbine maintenance, outage inspections, rotor alignment, and power generation applications.

Key Features

• Precision metric radius and axial clearance measurements

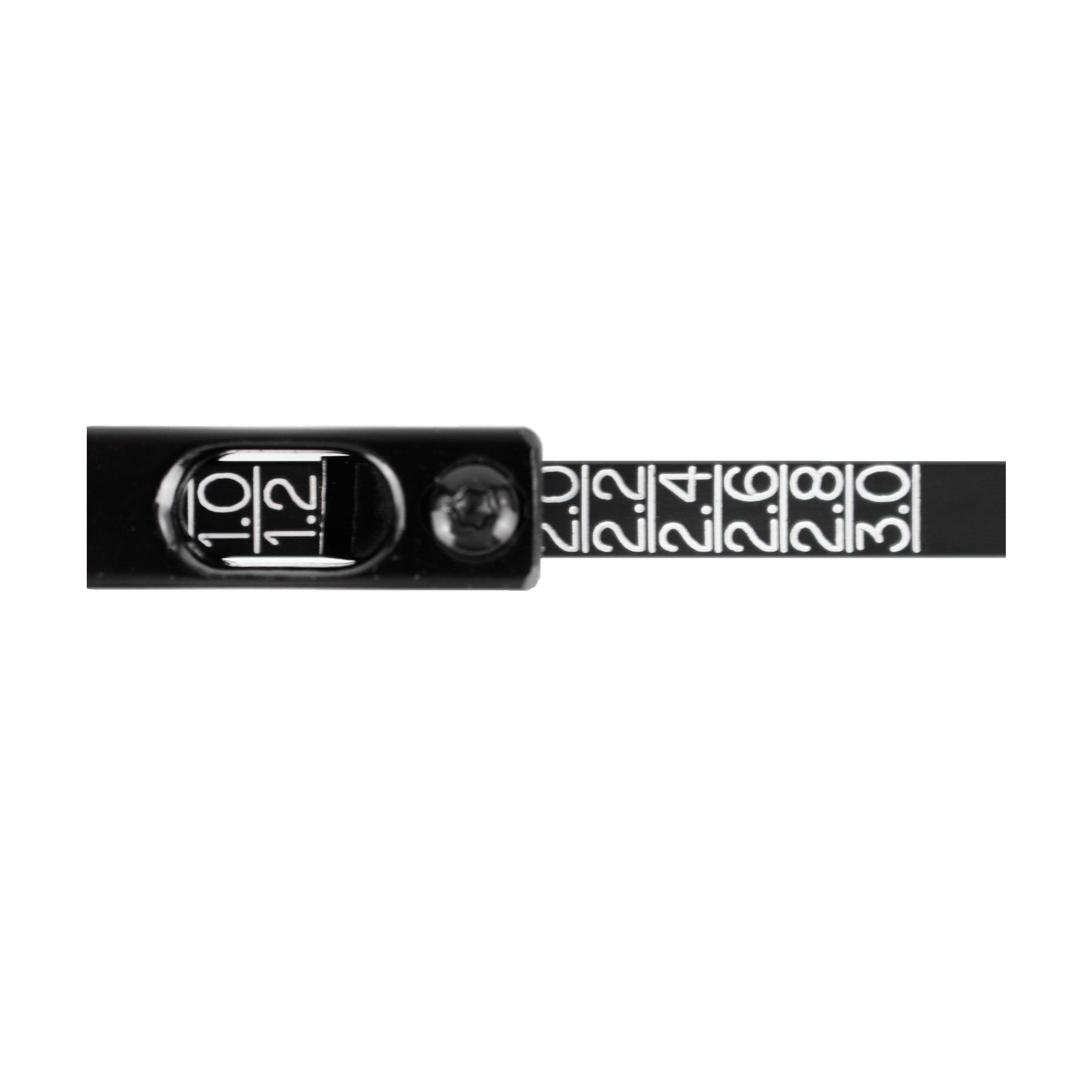

• High-visibility Easy Read markings for improved readability
• Designed for turbine packing, shaft, rotor, and diaphragm inspections
• Clears shaft and rotor for accurate readings below the joint
• RPG10115B-mm measures below damaged or worn packing teeth
• RPG10115A-B-mm measures directly at the horizontal joint
• Ideal for turbine maintenance, outage, and overhaul work
• Improves visibility in low-light field and outage conditions
• Enhances access in confined turbine measurement areas
• Durable construction for long service life

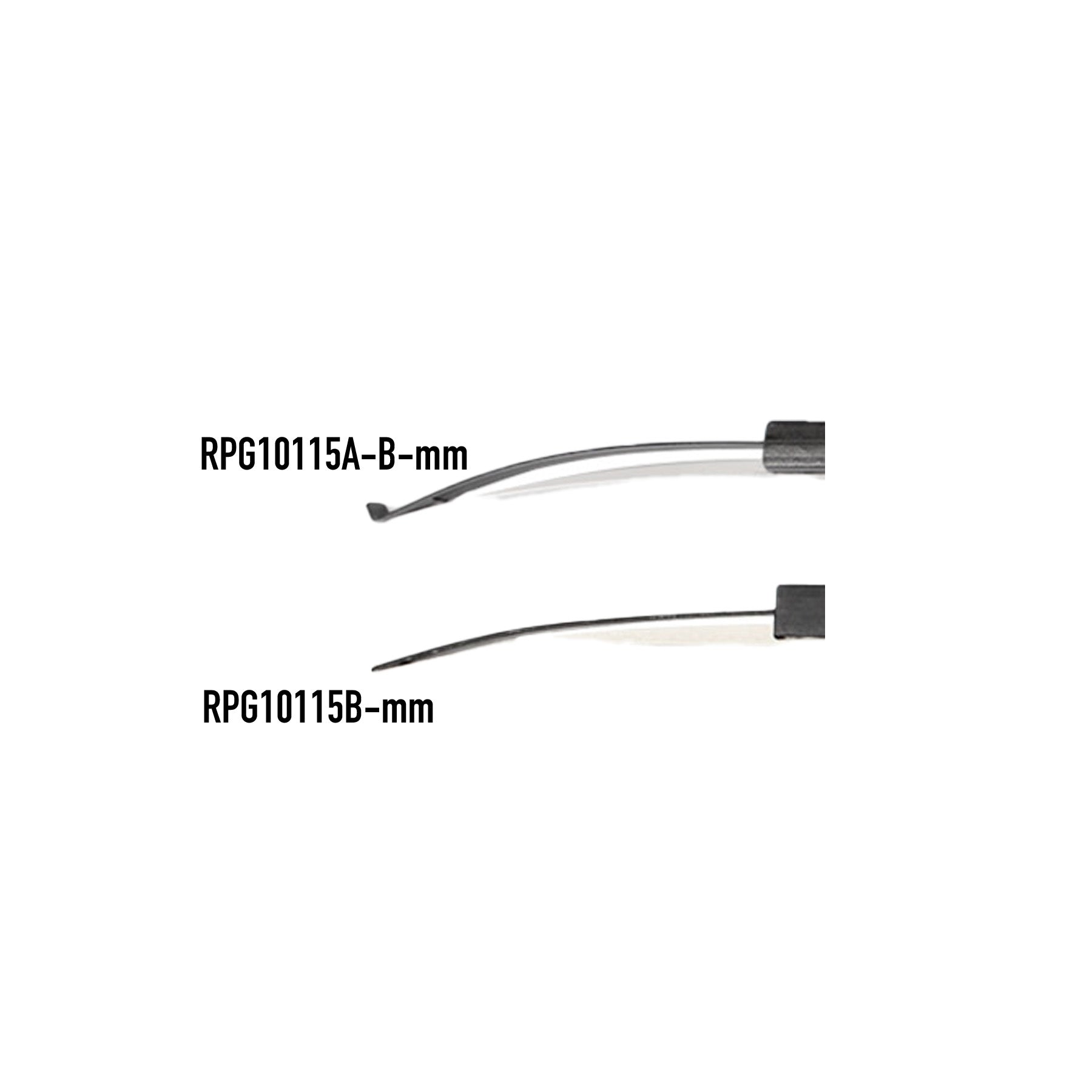

Model Number: RPG10115B-mm - Measures below damaged or worn packing teeth.

Model Number: RPG10115A-B-mm - Only takes readings at the horizontal joint.
