Tight Wire Brackets - Heavy Duty (TWB1)

Heavy Duty Model Number: TWB1

The TWB1 Tight Wire Brackets – Heavy Duty provide precise windage and elevation alignment for turbine assembly and maintenance. Featuring four Starrett micrometer heads and industrial-grade rollers on each bracket, this heavy-duty system delivers exceptional alignment accuracy for casings, shells, diaphragms, and packing components. Each kit includes two brackets and a durable carrying case for reliable use in power generation environments.

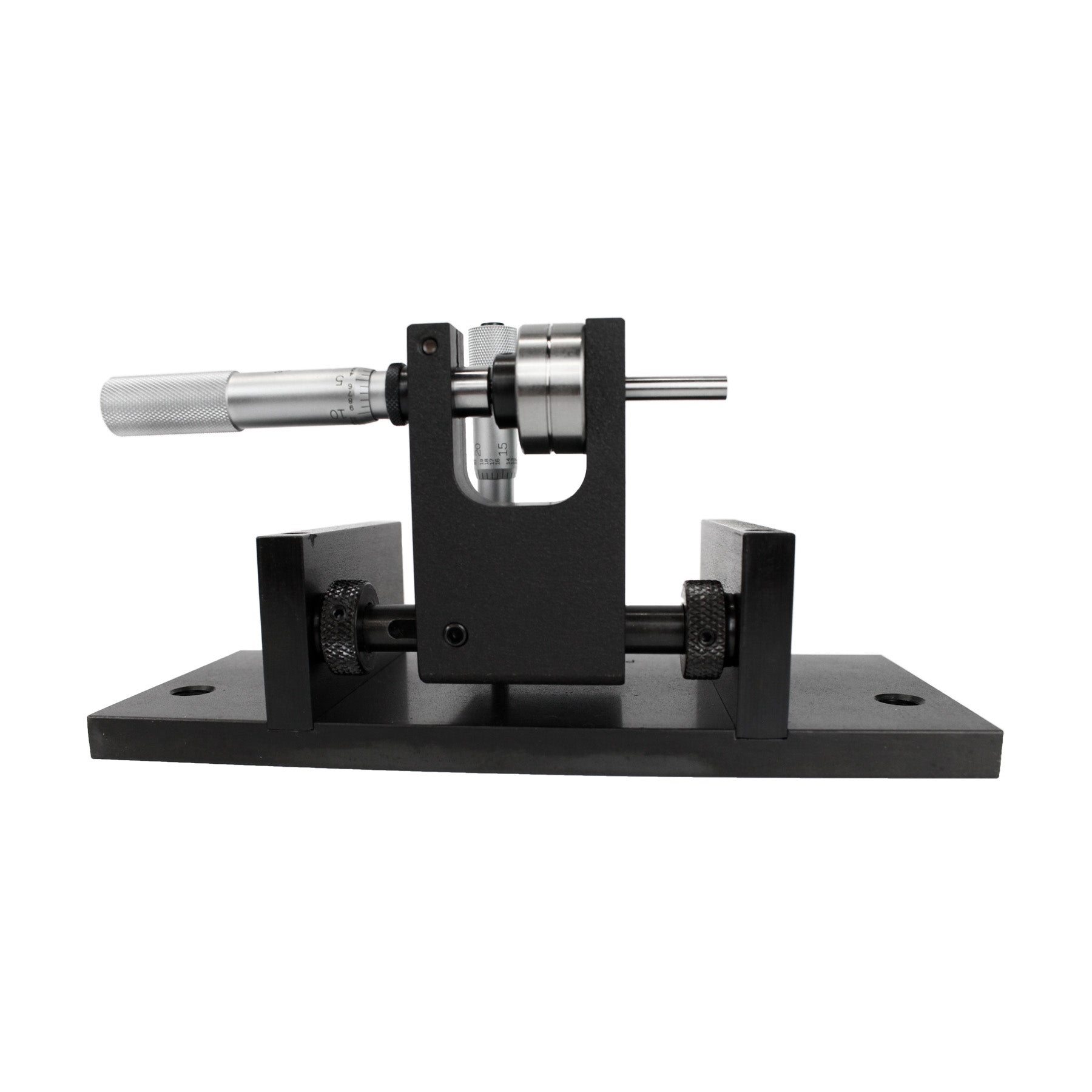

Each TWB1 bracket is equipped with four precision Starrett micrometer heads that independently control industrial-grade rollers, allowing for fine adjustment of both horizontal (windage) and vertical (elevation) positioning. This advanced adjustment capability provides exceptional measurement accuracy, helping maintenance teams achieve proper alignment of turbine casings, shells, diaphragms, packing rings, and other critical components that directly affect turbine performance and reliability.

Key Features:

• Heavy-duty tight wire alignment system for turbine applications
• Four precision Starrett micrometer heads per bracket
• Independently adjustable industrial-grade rollers for precise windage and elevation control
• Designed for turbine casings, shells, diaphragms, and packing alignment
• Provides highly accurate alignment measurements during assembly and overhaul
• Rugged construction for demanding field and shop environments
• Helps improve turbine efficiency by ensuring precise component alignment
• Reduces assembly errors, rework, and outage time

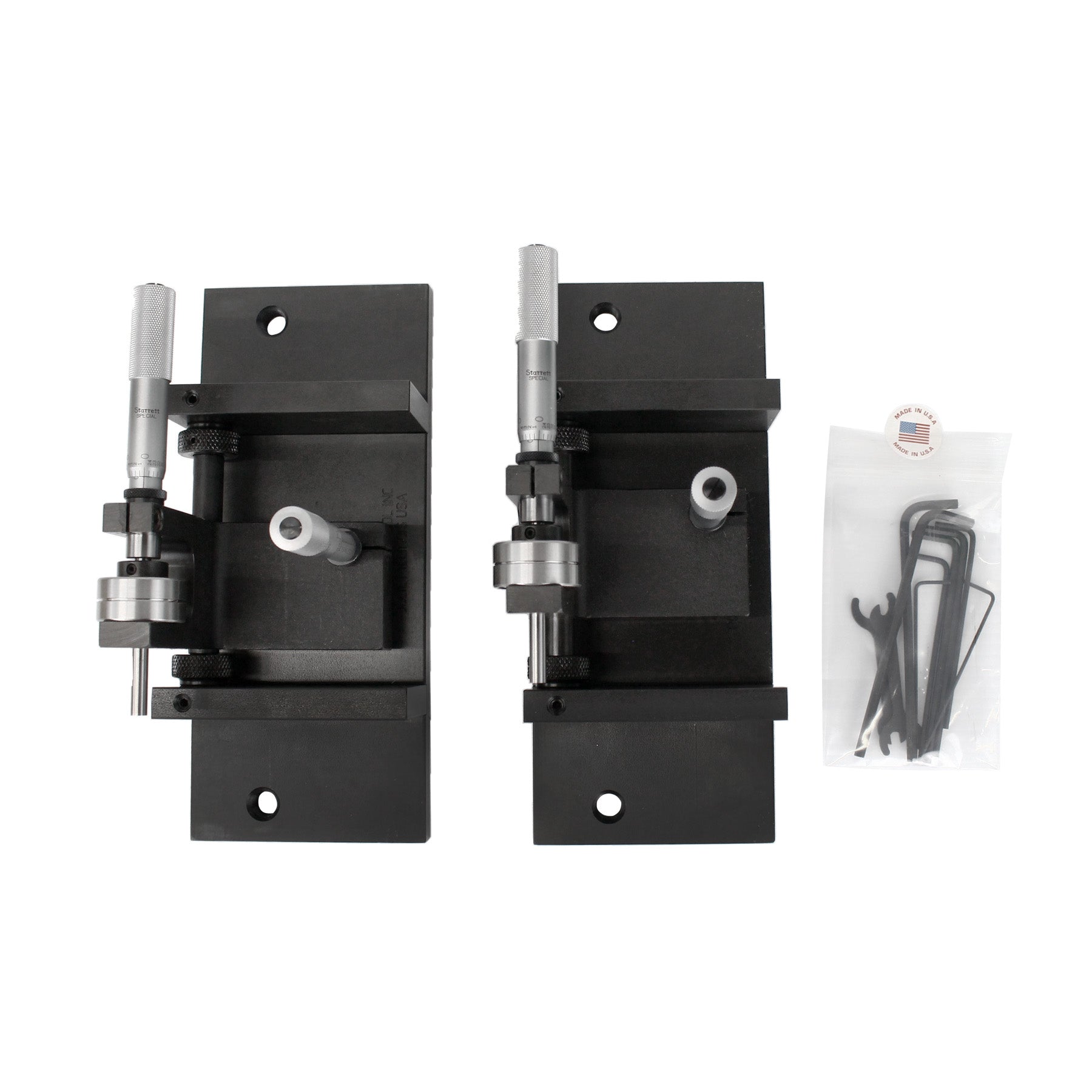

• Includes two Tight Wire Brackets

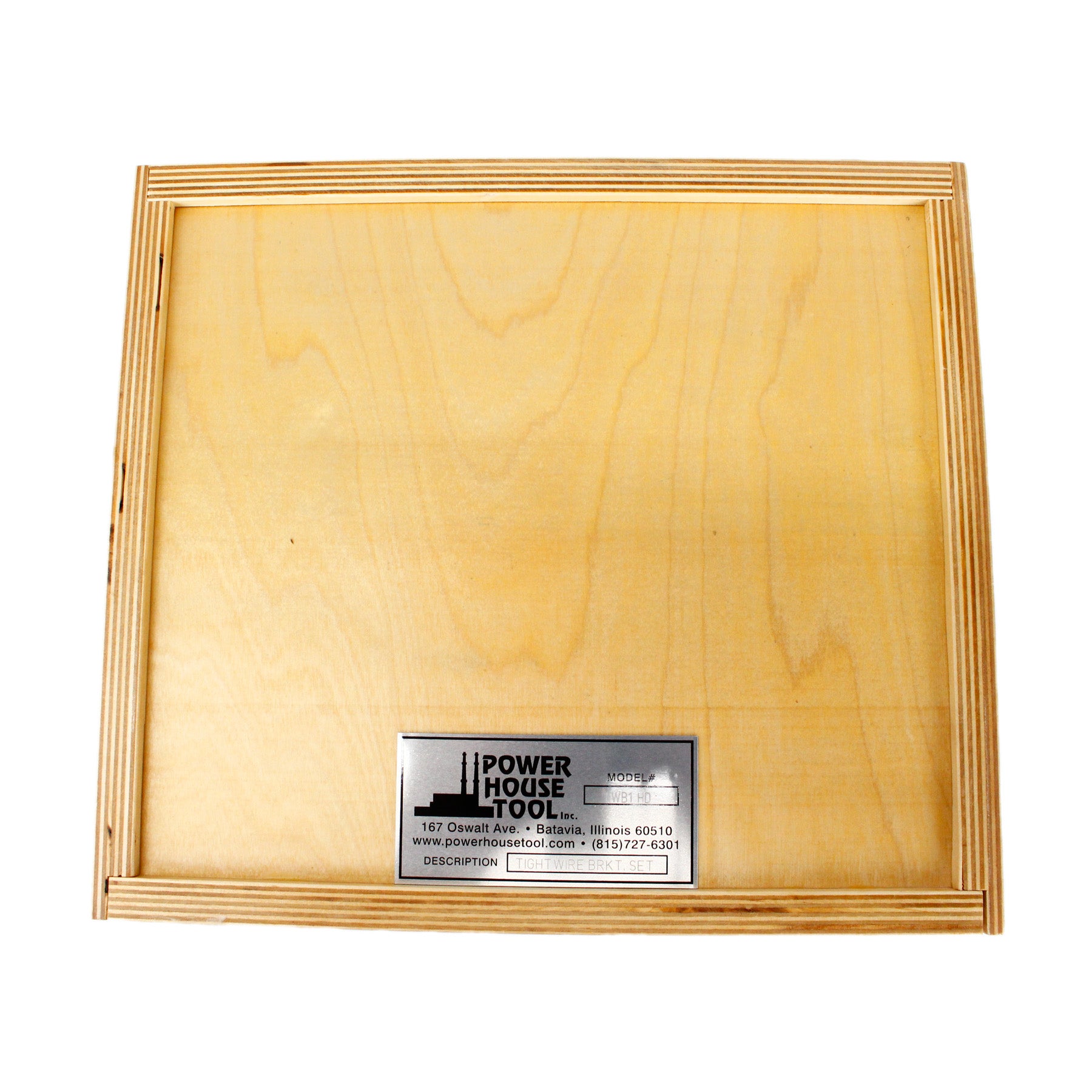

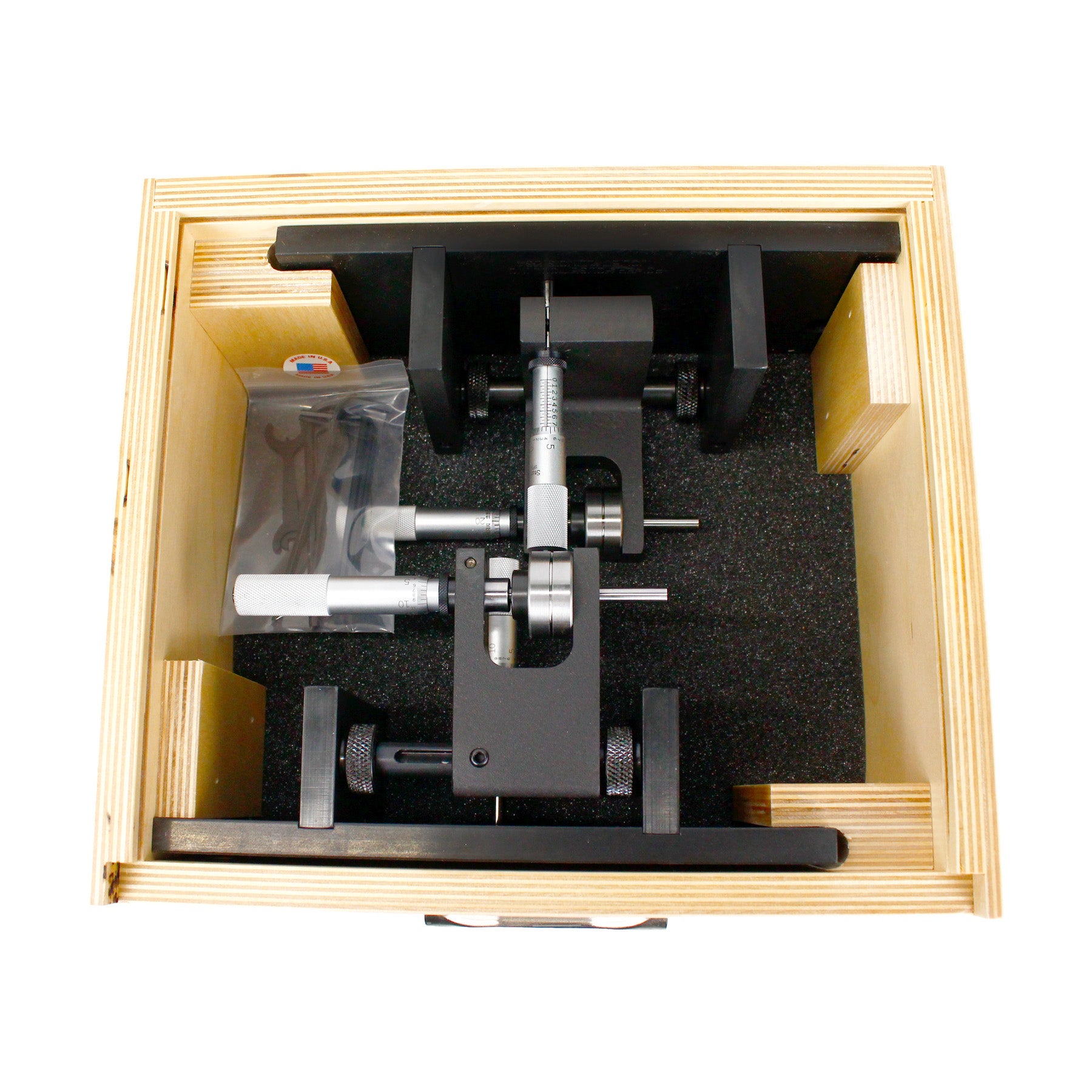

• Supplied in a durable protective carrying case for easy transport and storage
